How to Choose a Wafer Laminator Machine for Semiconductor Packaging

In semiconductor packaging, wafer laminator machines (also called wafer mounters or wafer taping systems) are the unsung heroes of yield and reliability. They apply protective dicing tapes, UV films, or DAF (Die Attach Film) to wafers before thinning, dicing, and assembly—directly impacting wafer stability, chip integrity, and final packaging yield. Choosing the right machine ensures zero bubbles, precise alignment, and damage-free handling, especially for ultra-thin (≤50 μm) or large-format (300 mm) wafers.
This guide breaks down the key factors, technical specs, and practical tips to select a wafer laminator that matches your production goals, budget, and process requirements.

1. Understand Your Core Production Requirements

Before comparing machines, define your baseline needs—this eliminates overspending on unnecessary features or buying underpowered equipment.
Wafer Specifications
Size: 200 mm (8-inch) or 300 mm (12-inch) (most common; some support 150 mm for legacy lines).
Thickness: Standard (200–750 μm) or ultra-thin (25–100 μm) (ultra-thin wafers need low-contact, high-precision handling to avoid breakage).
Warpage: High-warpage wafers (>50 μm) require adaptive pressure control to prevent cracking during lamination.
Tape/Film Compatibility
Semiconductor lamination uses three main tape types—ensure the machine supports your required material:
UV Dicing Tape:
Non-UV Dicing Tape:
DAF (Die Attach Film):
Production Volume & Automation Level

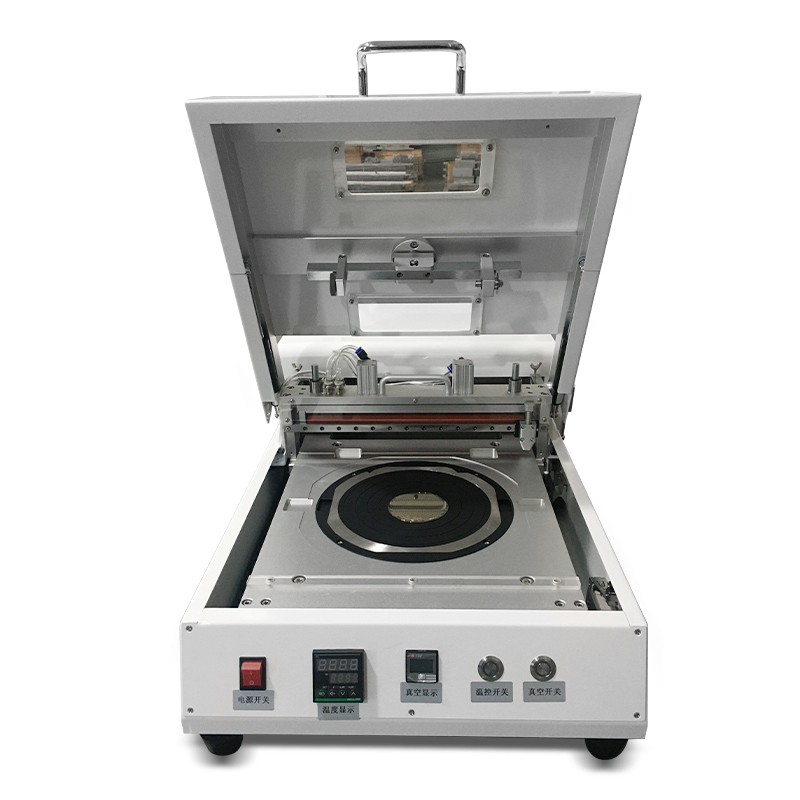

Low Volume (R&D/Prototyping): Semi-automatic machines (manual loading/unloading, auto lamination) – cost-effective, flexible for small batches.
High Volume (Mass Production): Fully automatic machines (auto wafer loading, tape application, alignment, cutting, unloading) – high throughput (30–60 wafers/hour), 24/7 operation, minimal labor.

2. Key Technical Specifications to Prioritize

The best wafer laminators balance precision, stability, and ease of use. Focus on these non-negotiable specs:
Precision & Alignment Accuracy
Alignment Tolerance: ±0.5 μm to ±2 μm (critical for 300 mm wafers and fine-pitch devices; poor alignment causes dicing misalignment and chip loss).
Position Repeatability: ±0.2 μm (ensures consistent lamination across thousands of wafers).
Lamination Quality Control
Bubble-Free Lamination: Look for vacuum-assisted lamination or programmable pressure rollers (bubbles cause wafer movement during dicing, leading to chipping or breakage).
Temperature Uniformity: ±1–2°C (critical for UV/DAF tapes; uneven temperature leads to inconsistent adhesion or tape degradation).
Pressure Control: Programmable (0.1–0.5 MPa) with uniform distribution (prevents wafer warpage, especially for thin substrates).
Throughput & Efficiency
Cycle Time: 30–60 seconds per wafer (semi-auto: ~40 sec/wafer; fully auto: ~30 sec/wafer).
Frame Compatibility: Supports standard 200 mm/300 mm metal frames (reduces tooling costs).
Safety & Compliance
SEMI S2/S8 Compliance: Meets semiconductor industry safety standards for equipment design and operation.
CE Certification: Ensures compliance with EU safety regulations (critical for global sales).
Emergency Stop & Safety Interlocks: Prevents accidents during operation.
